INFRA PORT Dredging

SHIVA GROUP

River , pond Lake Dredging , Jetty construction, Port Development , Break water, Bridge , Dam , ship building, under water Diving ,optical fiber cable, HDPE pipe , / electrical cable for submarine Projects , Road , Building, Railway, Power , solar , Construction, Earthwork, Control Blasting, Piling Work, Back Filling, Demolition work , development which Roads, Drains, Utility Pipe Line, infrastructure

Dredging Port infra

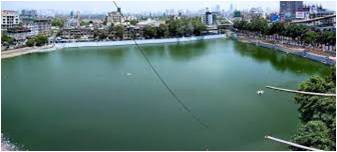

Lake Restoration and Beautification Project

MARINE CONSTRUCTION

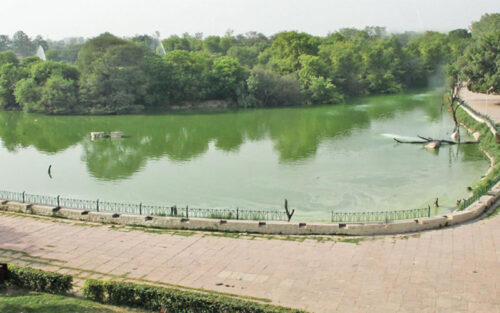

LAKE RESTORATION AND BEAUTIFICATION PROJECT

There are mainly two types of sources of water

Surface Sources

⦁ River
⦁ Lakes
⦁ Ponds
⦁ Springs

Subsurface sources

⦁ Wells
⦁ Infiltration gallery
⦁ Aquifers

The need for restoration of the lake

The main reason for the degradation of the lake

Pollution In lake
Less availability of water
Less maintenance

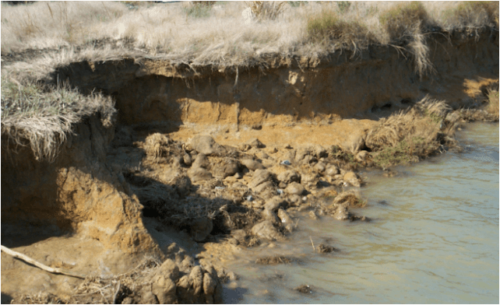

Shoreline management
Land ownership
No de-silting of lake

SHIVA DREDGING SOLUTIONS

Natural Treatment for Bacteria Reduction in Water

Most bacteria are harmless or beneficial. However, there are several forms of pathogenic bacteria that will cause sickness, disease and possibly even death. Pathogenic bacteria contamination of water bodies is a growing concern throughout the world. Freshwater supplies are under attack from stormwater runoff, leaking septic tanks, untreated or partially treated wastewater and neglect. We hear about beach closures due to coliform and fecal bacteria. We hear about restaurant food with pathogenic bacteria concerns, which leads to speculation that irrigation water is potentially contaminated. We hear about storms causing overflows in water treatment systems. It is no wonder concerns about bacteria in water are at an all-time high.

Bacteria can infect people if they are swallowed, inhaled, or come in contact with an open wound. Infections from bacteria can affect the ears, eyes, brain, skin, bowel, throat and lungs. Numerous studies have found that the levels of bacteria in the water are much lower than the levels in the sediments on the bottom of the water body. Then as recreational activities such as swimming, water skiing, and boating stir up the organic sediments on the bottom, bacteria levels in the water can actually increase. Of course, major storms and groundwater runoff can also increase bacteria levels very quickly in a water body.

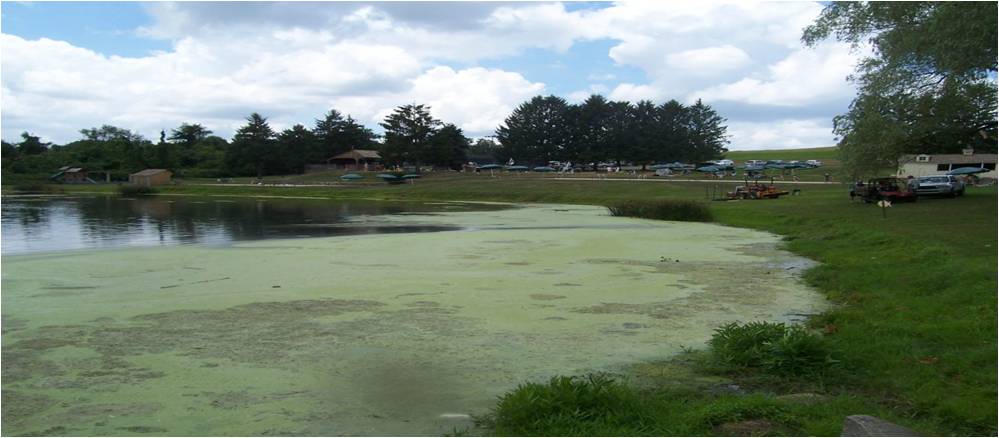

Before pond Aeration

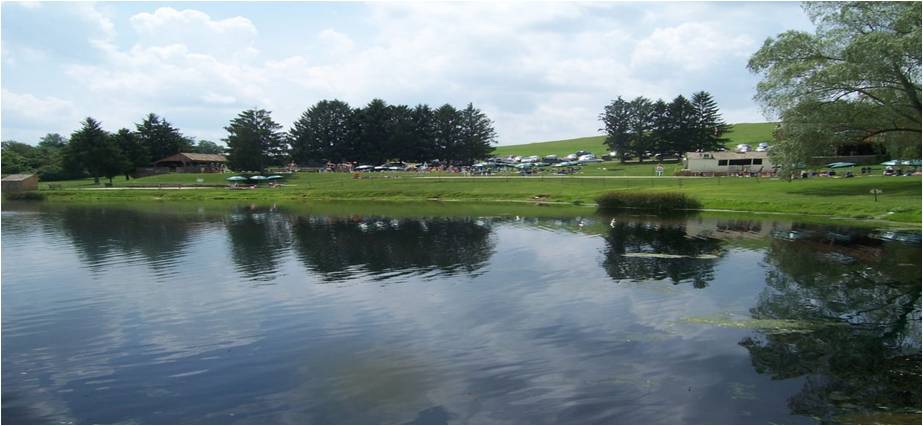

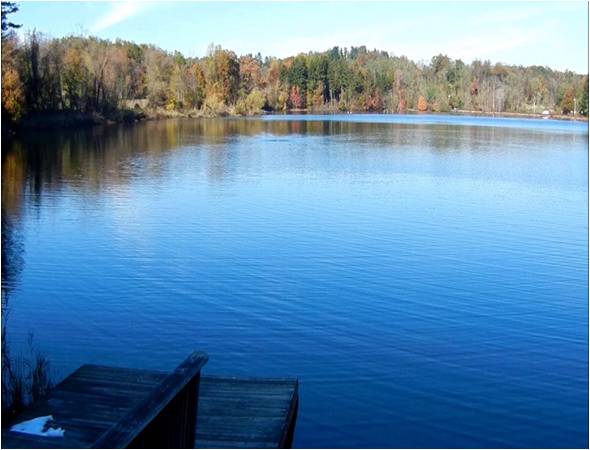

After pond Aeration

How to Reduce Bacteria in Water

Before pond

After pond

The SHIVA DREDGING SOLUTIONS Continuous Laminar Flow Inversion Oxygenation System will reduce bacteria levels in several ways:-

Some pathogenic bacteria are anaerobes. SHIVA DREDGING increases the oxygen concentration levels throughout the entire water column and into the sediment pore water, so many of these bacteria are killed.
Pathogenic bacteria of the fecal type require an organic nutrient broth in order to survive. SHIVA DREDINGH allows aerobic beneficial bacteria to consume the organic nutrients, removing them from the water column and eliminating the nutrient broth.
Practically all pathogens are killed by ultraviolet light, which the sun emits. This ultraviolet does not penetrate the water deeply, so only surface water is affected under normal conditions. Introduction of SHIVA DREDGING SOLUTIONS will bring the unaffected bottom waters to the surface, where ultraviolet will kill and or weaken the bacteria.
Most pathogens require carbon dioxide, phosphorus, nitrogen, ammonia or sulfur to live. The SHIVA DREDGING SOLUTIONS system reduces the amount of these nutrients in the water.
Most pathogens require an acidic to a slightly acidic environment for survival, in the pH range of 5.0 to 8.0. By removing carbon dioxide and killing acid producing bacteria through steps 1 and 3 above, the SHIVA DREDGING SOLUTIONS system causes water to become more alkaline.
SHIVA DREDGING SOLUTIONS creates conditions whereby some aerobic bacteria actually feed on pathogenic bacteria. As a result of oxygenating the water body, creating an environment where aerobic bacteria thrive, reducing the nutrient media, raising the pH and exposing pathogenic bacteria to sunlight, these pathogens are weakened or killed.

The restoration can be done through –

Debris removal from the area above water level

Uses of Bathymetric and Vegetation Mapping for Reservoirs, Ponds, & Lakes
Sonar depth and vegetative mapping services can be used for any size lake, pond, reservoir, or any other water body to determine important variables including:
Average Water Depths
Maximum Water Depths
Calculating Water Volumes & Surface Areas
Sediment Volumes and Monitoring
Pond & Lake Aeration Design Parameters
Water Quality Monitoring
Fisheries Management
Algae & Aquatic Weed Control
Reduction in Organic Muck After Aeration
Vegetation and Bathymetric Mapping for Water Quality Improvement
SHIVA DREDGING SOLUTIONS pond, lake and reservoir mapping with BioBase is an efficient method to help understand a body of water’s unique characteristics. Vegetation and bathymetric maps produced using Bio Base can be a great measurement tool for any restoration or water quality improvement project as these maps provide an in-depth understanding of the physical and morphological characteristics of the water body

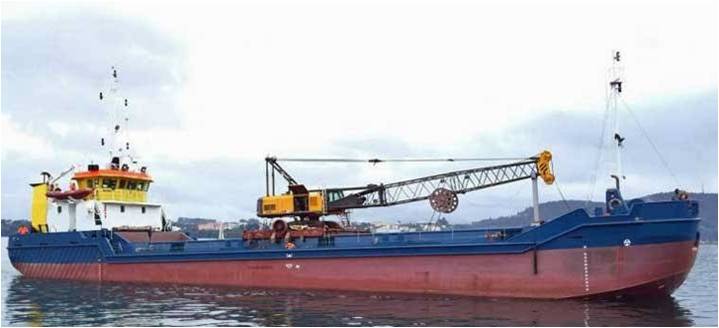

Self propelled hopper Grab Dredger

Multy Bucket Ladder Dredger

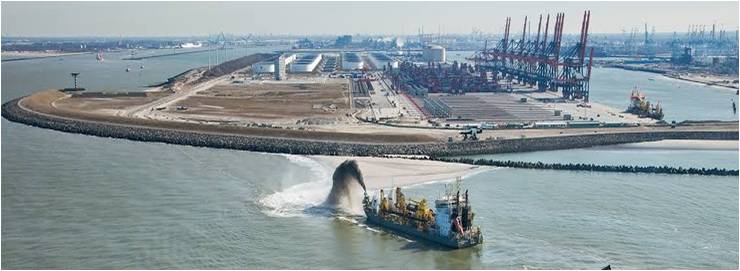

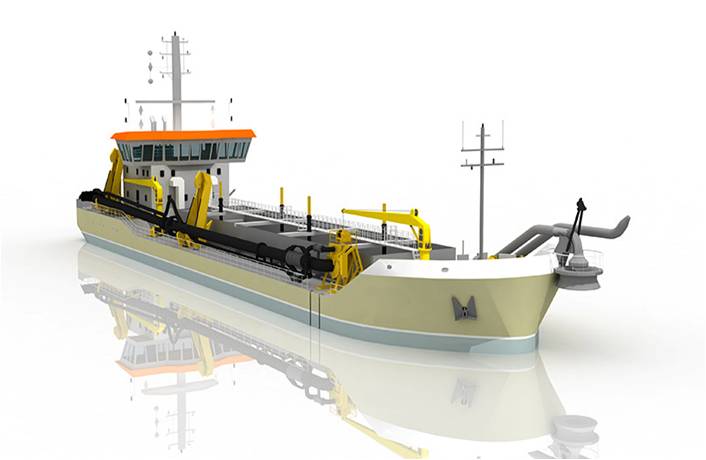

Trailing suction hopper dredger

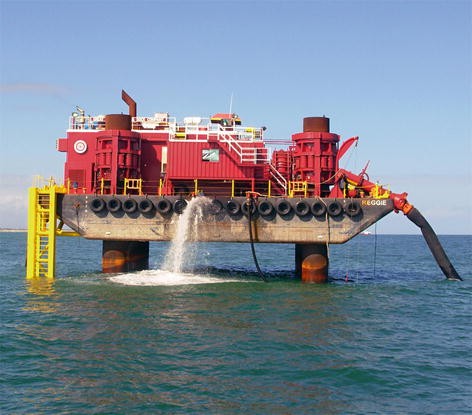

Dredging below the water surface till designated depth

Water treatment / recycling

Marine Biology area
Water tourism activities area

Many rivers, estuaries, lakes, ponds and other water bodies across the globe are victims of urbanization and are polluted beyond their self-recovery capacity. Uncontrolled dumping of garbage, debris and sewage into water bodies leads to an influx of various pollutants including organic compounds, phosphates and nitrates, thereby adversely impacting the water quality. These pollutants lead to eutrophication of ponds and lakes by boosting growth of algae and undesirable weeds like water hyacinth. Excessive algal growth, in turn, interferes with penetration of light and also leads to reduced dissolved oxygen levels in water bodies, thereby hampering the growth of other aquatic organisms and disruption of the balance of the aquatic ecosystem. Due to reduced dissolved oxygen, anaerobic degradation of organic matter takes place, which leads to the production of foul-smelling gases like ammonia and hydrogen sulphide, causing odour issues in the vicinity.

A sustainable restoration of various polluted water bodies like lakes, ponds, estuaries etc. for reversing the adverse impacts of the pollutants by bioremediation technique. Bioremediation is a treatment process in which the affected water body is restored by in-situ application of selective biocultures (yeast, fungi or bacteria) or their consortium to degrade accumulated complex organics and other hazardous substances into less toxic or non-toxic end products.

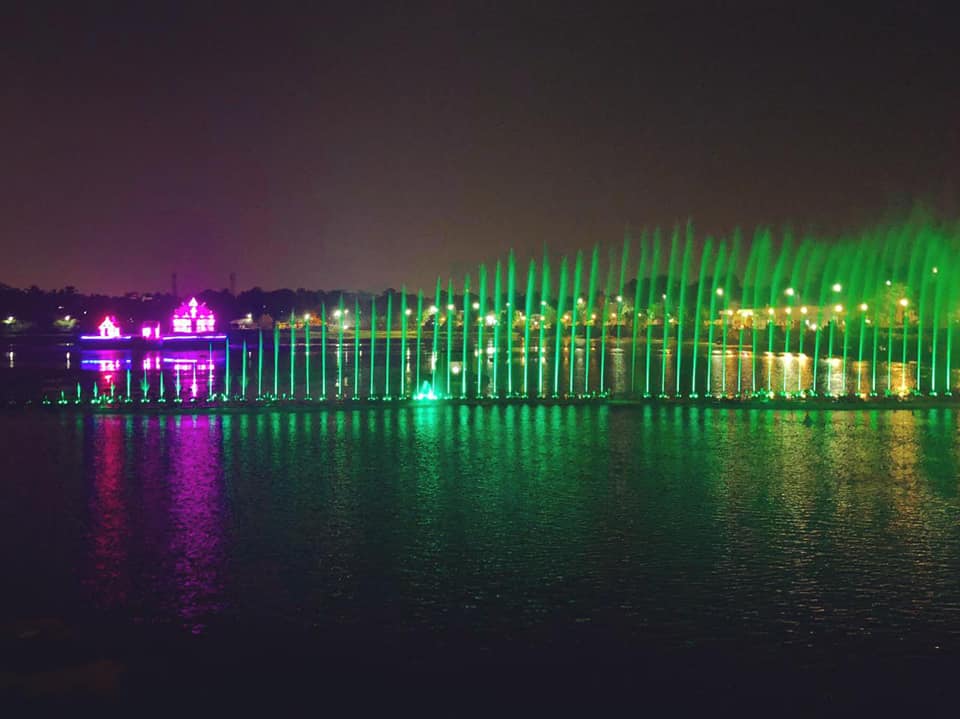

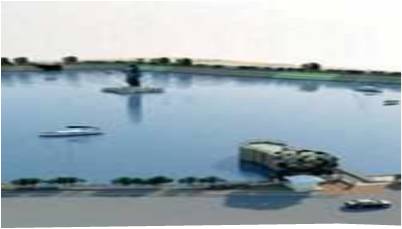

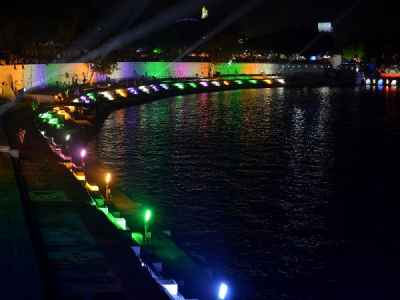

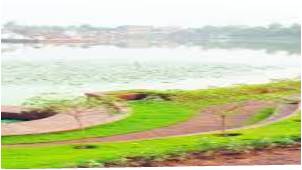

Lake Beautification

Through beautification, gardening and recreational facility we can improve the local tourism and an increase in employment. We know that lake water use for irrigation purpose but if there are any pollutants or any chemical impurities in the water body that water cannot use for directly in irrigation. Hence, we must treat that water before use.

By restoring our lakes and water bodies we save our natural resources. As per our point of view, it is a gift from God.

Mr. ASHUTOSH SINGH (FOUNDER & C.E.O.) having Good Experience in multiple business sector with SHIVA GROUP of Business solutions A unit of SHIVA SHIPPING TRADING was established in the year 2009 the dynamic leadership of the sincere efforts of all other Directors from the initial stage of business has proved the rapid growth of the company.

United under one roof of the company has unique diversified portfolio which includes . The primary objective of the company is to meet the growing needs & demands of the Marine sector, River , Lack , pond, All typ of Dredging , Dam construction & Repairing, ship Building, chartering, Broking, Jetty construction, Break Water, seawall construction, Port Development & Management, Shipping Industry, infrastructure, optical fiber cable Laying, HDPE pipe, / electrical cable for submarine Projects , Road , Building, Railway, Power , solar , Oil & Gas Sectors. Earthwork, Control Blasting, Back Filling, Demolition work , development which Roads, Drains, Utility Pipe Line, infrastructure , projects Managements.

Our registered ofﬁce is located in the coastal city of MUMBAI, &. GUJRAT India. We function and operate throughout India with strategically located branch ofﬁces at Mumbai (Maharashtra), Bhavnagar (Gujarat), Cochin (Kerala) and Goa (Maharashtra)

Shri. Laxman Singh Soun

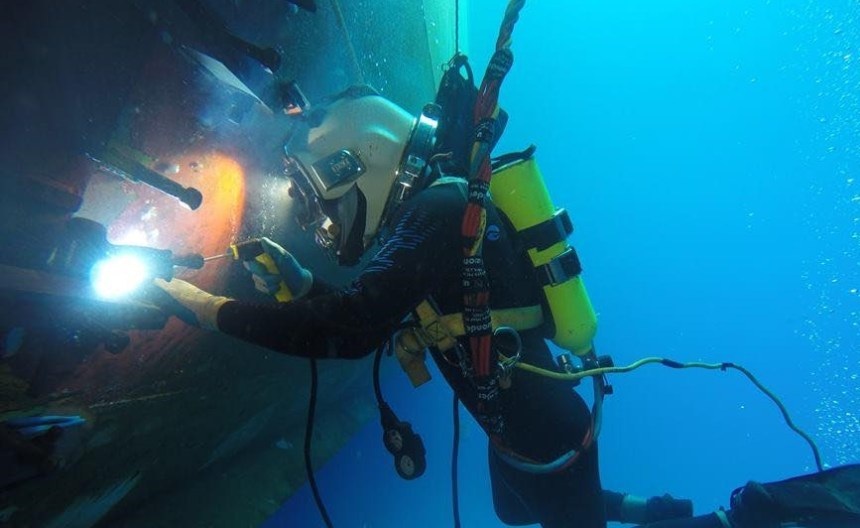

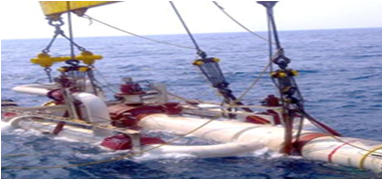

SG SHIVA GROUP performed diving services offshore and onshore utilising highly qualified project management and dive teams with an array of diving packages of maximum allowed depth as per IMCA & U.S. Navy Diving Manual.
Air Diving Onshore & Offshore work (Includes block placing, break water, Diving support for Jetty Construction / Maintenance Works)
Mix Gas Diving Works
Saturation Diving Work
Offshore SBM / SPM Maintenance work
Marine Survey Work & Personnel
Underwater Cable Laying
We also provide all the categories of personnel related to field mentioned below who are qualified with relevant certification and experience in their respective fields.
Offshore & Onshore Construction Companies – Complete Project Crew.
Drilling / Exploration Companies – Drilling Personnel
Offshore, Shipping & Marine – All categories of Officers & Ratings

Shri. Nilesh Narendra Bhansali, Marine Consultant.

work process, EPCC, manufacturing processes, cost estimating softwares and systems, coordinating, and controlling the new building construction contracts in marine, offshore, oil and gas, renewable energy sectors

Strong leader skilled at managing the staff, detailed oriented, highly organised and ability to prioritise and manage multiple tasks

New Build Projects - HVDC Platform, Subsea Oil Storage Tank, H6e Semi Submersibles, Seismic Vessels, Tugs, Floating Dock, Diving Support Vessels, Anchor Handling Tugs, Bunker Tankers, Gravity Base Structure, Floating Crane

Naval Projects – Missile Boats, Border Security Boats, Suction Dredger, Medium Refit of Submarines, Prototype of Nuclear Submarine

New Build Facilities Augmentations, Heavy Lift Operations, Heavy Transportation, Loadout and Launching

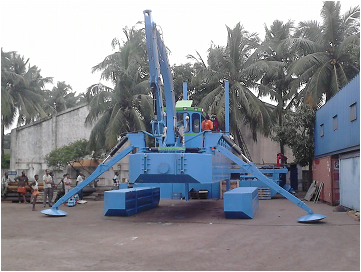

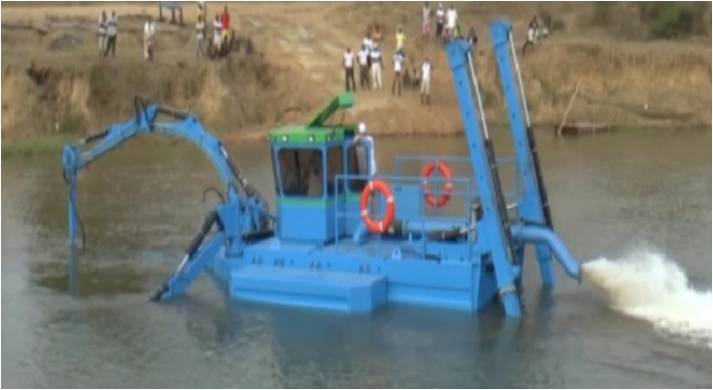

(water king ) Dredger is the amphibious multipurpose solution for all shallow water work.

Capabilities include Suction dredging, Backhoe dredging,Raking & Pile driving – all from dry ground to 6 meters depth.
Typical Water king applications:

Deepen and maintain shallow waterways
Prevent floods and clean the environment
Utilize in construction projects
Maintain and clean industrial ponds

Water king reduces investment, operational and maintenance costs

since one machine does the work of many separate machines.

Water king is fully amphibious in all work modes, capable of operating in water, wetlands and on dry ground – able to reach and work at the most challenging sites.

Mobilizing Water king is easy. Transport on a standard trailer, unload and walk independently into water without crane assistance. Water king has its own propulsion system, four stabilizers and a flexible excavator arm so moving, anchoring and operating in water is also quick and independent. Water king is operated by one man, no assisting vessels, extra labour, separate anchors, wire-cables or winches are needed. Water king’s smart work process maximizes productive work time and minimizes the need for repositioning and manual servicing.

The unique mobility, heavy duty versatility and field-proven reliability supported by Water king service network make Water king the smart solution for hard work.

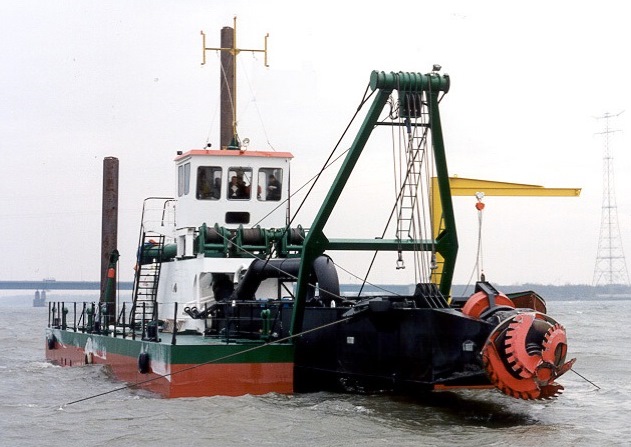

TECHNICAL SPECIFICATION Cutter Suction Dredger. CSD water king” Amphibian Structure Dredger

Length - 10.5 mtr.
Breadth- 03.00 mtr.
Height- 1.2 mtr.
Weight (approx) - 21 tons
Draft (Loaded) - 0.55 mtr.
Side pontoons for Positve Buoyancy - Suitable, below Deck
Engine mounted Caterpillar (Perkins) - 186 kw / 252 HP
Dredging depth- 6 mtr.
Dredging output - 770 m3/hr
Delivery distance - 1000 mtr.
Hydraulicaly driven cutter head- 600 mm .

Six typ services in one Dredger

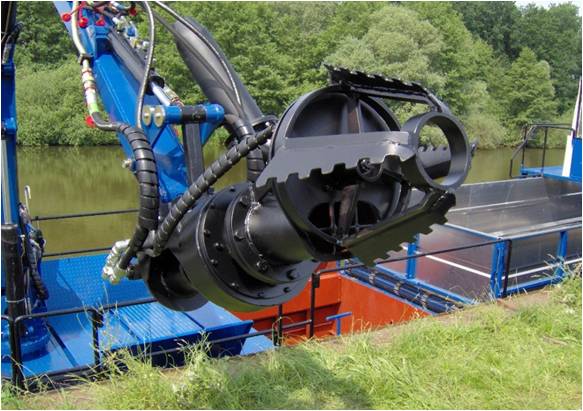

Forward Boom Attacment

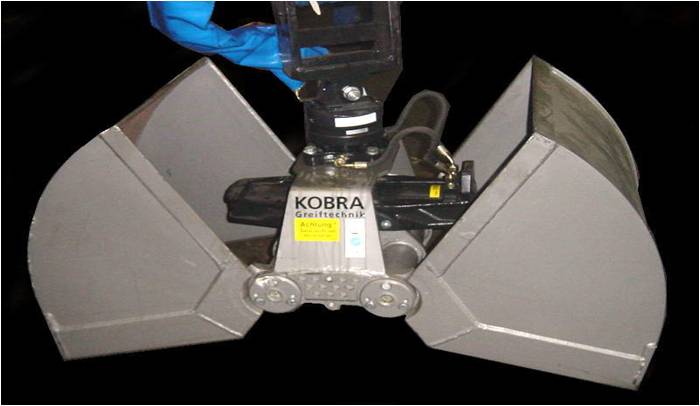

Clamshell Bucket (Grab Dredger)

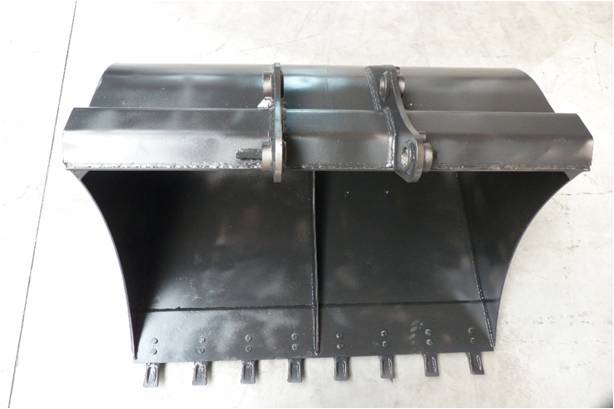

Backhoe Dredger Bucket

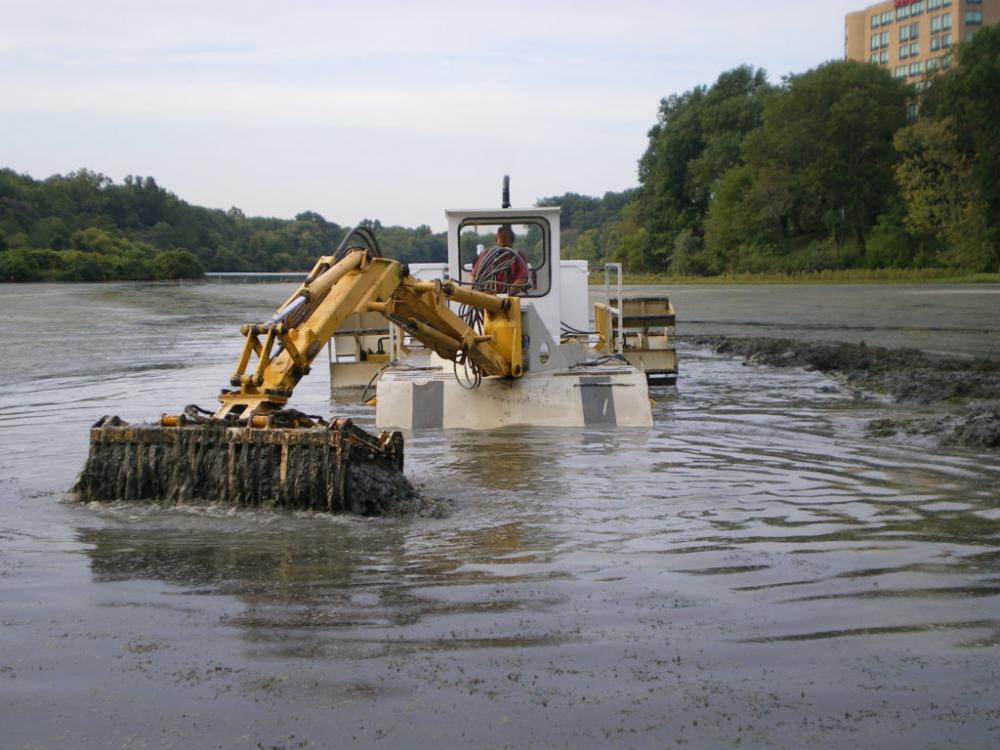

CLEARING RAKE

Pile Driver

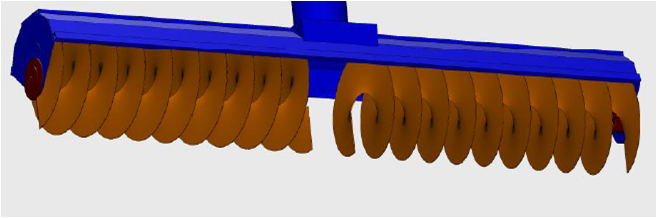

Auger head for sludge removal

we have the following Marine equipment

GRAB DREDGER with 100 & 150 ton capacity- 2 No.
Backhoe Dredger- Deging Depth- 18 Mtr, = 2 No.
Cutter suction dredger 300 mm suction dia, Deging depth = 10 mtr. = 2 no.
Cutter suction dredger- 450 mm suction dia, Deging DEPTH- 15 mtr with pipe line – 500 mtr = 1 No. ,
Cutter suction dredger- 650 mm suction dia, Deging depth = 21 mtr, – with pipe line = 2 km. == 1 no.
TUG- 700 BHP(IV CLASS) = 1 NO.
TUG – 1700 BHP (IV CLASS) = 1 NO.
ANCHORE HANDLING TUG – 450 BHP (IV CLASS) = 1 NO.
TUG – 2400 BHP (IRS CLASS) = 1 NO.

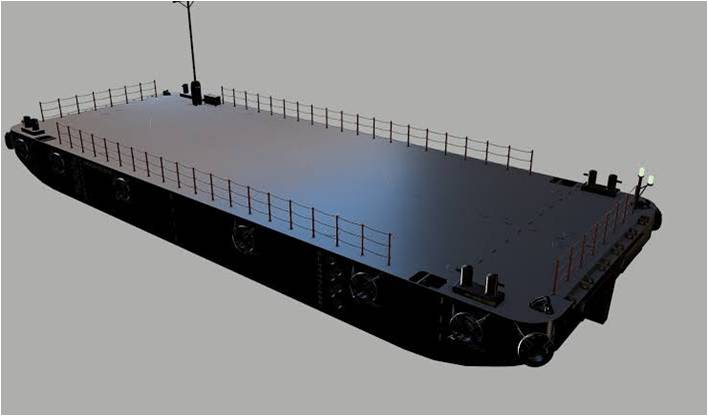

FLATOP PONTOON = 55 X 17 MTR. = 1 NO.
FLATOP PONTOON = 36 X 12 MTR =1 NO.
SELF PROPELLED HOPPER BARGE (BOTTOM DOOR Opening ) 1000 m3= 1 no.
SELF PROPELLED HOPPER BARGE (BOTTOM DOOR Opening ) 750 m3= 1 no.
SELF PROPELLED HOPPER BARGE (BOTTOM DOOR Opening ) 500 m3= 1 no.
Drum Hopper barge- 350 cbm = 1 no.
STEEL BOAT SINGAL ENGINE -165 BHP = 4 NO
MULTY BUCKET LADDER DREDGER = 1 NO.
SELF PROPELLED TRAILING SUCTION HOPPER DREDGER- 6000 M3, HOPPER CAPACITY

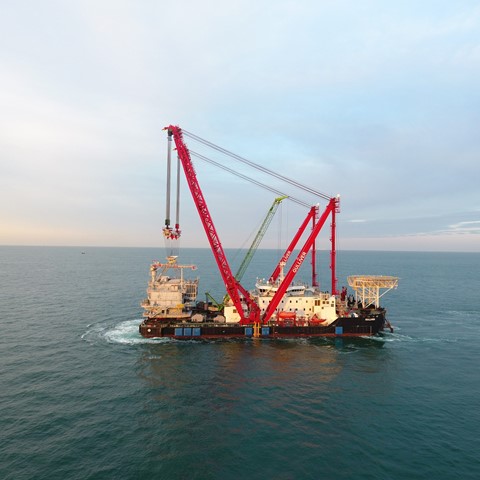

JACK UP BARGE WITH 300 TON CRANE ,SPUD LENGTH- 32 MTR= 1 NO.

With a pan India footprint, the groups headquarter is located at Mumbai with more than 30 staff in office and more than 100 employees on field and more than 300 labors under contract. The Company is backed by experienced people across technical and commercial resources.

Our sister company started activity with trading and import business in achieved turnover more than Rs. 400 Cr yearly and in the year 2013 started civil contract works and done civil work for Lodha builder, bitwise, Kumar builder, Poddar builder and many more till 2018. The company owned construction machinery for 500000 Sq. ft RCC work and financial of civil work enclosed.
